iR Regular Boiler

iR15 iR18 iR24 iR32 iR40

Every ATAG boiler carries a 10 years warranty as standard with options up to 14 years and they’re professionally installed by our ATAG Selected Partners.

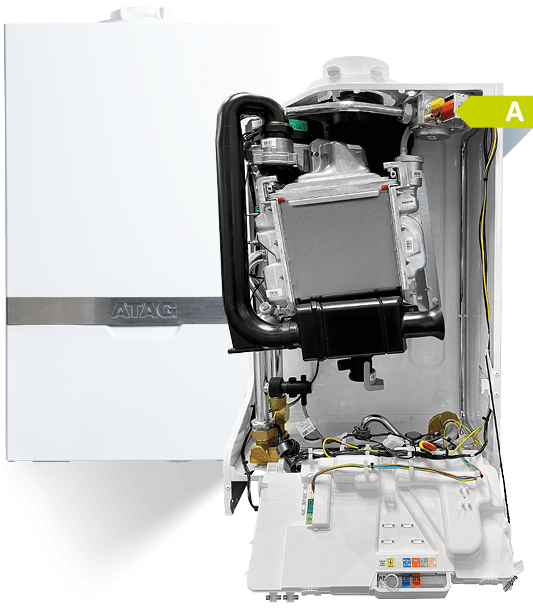

Our high-efficiency regular boiler.

Also known as conventional boilers that are fitted in many UK homes. Regular boilers offer a simple and straightforward boiler replacement solution that traditionally requires a loft space to house the feed and expansion tank.

Extremely energy efficient with simple to use controls. Extensive flue solutions mean you can site the boiler almost anywhere in your home.

Homeowners seeking even more efficiency can combine an iR Regular boiler with one of our iSteel hot water cylinders.

Get a quote Manual Not sure which boiler you require? Key Features Specification

Key features and benefits

compact

Compact dimensions

h700 x w440 x d366 (mm)

models

Five models available

15kW, 18kW, 24kW, 32kW, 40kW

warranty

Up to 14 years warranty

Including all parts and labour

user-friendly

Completely user friendly

with intuitive controls

no-sound

Quiet in operation

Due to bottom-up modulation

snow

Frost protection

With built-in frost protection

erp-a

ErP "A" rated

Achieves ErP ‘A’ rating for heating and hot water

loved

Loved by customers

ATAG is the UK’s highest rated boiler brand on Trustpilot

  • A 275 mm (deep) model is available to fit inside kitchen cupboards
  • 10 years warranty as standard with options up to 14 years
  • Control the system via smartphone or tablet using the ATAG ONE controller
  • ATAG iCon stainless steel heat exchanger – with its unique lifetime replacement guarantee
  • Detailed fault codes on LCD display for quicker, more accurate boiler diagnostics
  • Fully compatible with ATAG iSteel cylinder range & the 3 port valve kit
  • Built-in anti-cycling function for improved efficiency
  • Combined condensate and pressure relief valve outlet pipe means less pipework
  • Fully compatible with solar thermal hot water systems and ATAG iSteel twin coil cylinder range
  • Supplied with fixing jig as standard, for rear piping up behind the boiler

Specifications

Scroll to view more information

PART NUMBER

BR400115

ERP SEASONAL SPACE HEATING ENERGY EFFICIENCY CLASS

A

ERP SEASONAL SPACE HEATING ENERGY EFFICIENCY (%)

94

CH OUTPUT KW (50/30°C)

14.7

SEDBUK 2009 (%)

89.8

DIMENSIONS (H X W X D) MM

700X440X355

BOILER LIFT WEIGHT WITH JIG KG

32

STANDARD WARRANTY (YEARS)

10

LPG CONVERSION KIT AVAILABLE

YES

NOX CLASS

6

INGRESS PROTECTION (IP)

IPX4D

MAXIMUM EQUIVALENT HORIZONTAL FLUE LENGTH (M) 60/100MM

18

MAXIMUM EQUIVALENT VERTICAL FLUE LENGTH (M) 60/100MM

18

MAXIMUM EQUIVALENT HORIZONTAL FLUE LENGTH (M) 80/125MM

50

MAXIMUM EQUIVALENT VERTICAL FLUE LENGTH (M) 80/125MM

50

Scroll to view more information

PART NUMBER

BR400118

ERP SEASONAL SPACE HEATING ENERGY EFFICIENCY CLASS

A

ERP SEASONAL SPACE HEATING ENERGY EFFICIENCY (%)

94

CH OUTPUT KW (50/30°C)

17.5

SEDBUK 2009 (%)

89.8

DIMENSIONS (H X W X D) MM

700X440X355

BOILER LIFT WEIGHT WITH JIG KG

32

STANDARD WARRANTY (YEARS)

10

LPG CONVERSION KIT AVAILABLE

YES

NOX CLASS

6

INGRESS PROTECTION (IP)

IPX4D

MAXIMUM EQUIVALENT HORIZONTAL FLUE LENGTH (M) 60/100MM

18

MAXIMUM EQUIVALENT VERTICAL FLUE LENGTH (M) 60/100MM

18

MAXIMUM EQUIVALENT HORIZONTAL FLUE LENGTH (M) 80/125MM

50

MAXIMUM EQUIVALENT VERTICAL FLUE LENGTH (M) 80/125MM

50

Scroll to view more information

PART NUMBER

BR400124

ERP SEASONAL SPACE HEATING ENERGY EFFICIENCY CLASS

A

ERP SEASONAL SPACE HEATING ENERGY EFFICIENCY (%)

94

CH OUTPUT KW (50/30°C)

23.2

SEDBUK 2009 (%)

89.8

DIMENSIONS (H X W X D) MM

700X440X355

BOILER LIFT WEIGHT WITH JIG KG

32

STANDARD WARRANTY (YEARS)

10

LPG CONVERSION KIT AVAILABLE

YES

NOX CLASS

6

INGRESS PROTECTION (IP)

IPX4D

MAXIMUM EQUIVALENT HORIZONTAL FLUE LENGTH (M) 60/100MM

18

MAXIMUM EQUIVALENT VERTICAL FLUE LENGTH (M) 60/100MM

18

MAXIMUM EQUIVALENT HORIZONTAL FLUE LENGTH (M) 80/125MM

50

MAXIMUM EQUIVALENT VERTICAL FLUE LENGTH (M) 80/125MM

50

Scroll to view more information

PART NUMBER

BR400132

ERP SEASONAL SPACE HEATING ENERGY EFFICIENCY CLASS

A

ERP SEASONAL SPACE HEATING ENERGY EFFICIENCY (%)

94

CH OUTPUT KW (50/30°C)

31.2

SEDBUK 2009 (%)

89.8

DIMENSIONS (H X W X D) MM

700X440X355

BOILER LIFT WEIGHT WITH JIG KG

35

STANDARD WARRANTY (YEARS)

10

LPG CONVERSION KIT AVAILABLE

YES

NOX CLASS

6

INGRESS PROTECTION (IP)

IPX4D

MAXIMUM EQUIVALENT HORIZONTAL FLUE LENGTH (M) 60/100MM

6

MAXIMUM EQUIVALENT VERTICAL FLUE LENGTH (M) 60/100MM

6

MAXIMUM EQUIVALENT HORIZONTAL FLUE LENGTH (M) 80/125MM

45

MAXIMUM EQUIVALENT VERTICAL FLUE LENGTH (M) 80/125MM

45

Scroll to view more information

PART NUMBER

BR400140

ERP SEASONAL SPACE HEATING ENERGY EFFICIENCY CLASS

A

ERP SEASONAL SPACE HEATING ENERGY EFFICIENCY (%)

94

CH OUTPUT KW (50/30°C)

38.8

SEDBUK 2009 (%)

89.8

DIMENSIONS (H X W X D) MM

700X440X355

BOILER LIFT WEIGHT WITH JIG KG

42

STANDARD WARRANTY (YEARS)

10

LPG CONVERSION KIT AVAILABLE

YES

NOX CLASS

6

INGRESS PROTECTION (IP)

IPX4D

MAXIMUM EQUIVALENT HORIZONTAL FLUE LENGTH (M) 60/100MM

6

MAXIMUM EQUIVALENT VERTICAL FLUE LENGTH (M) 60/100MM

6

MAXIMUM EQUIVALENT HORIZONTAL FLUE LENGTH (M) 80/125MM

45

MAXIMUM EQUIVALENT VERTICAL FLUE LENGTH (M) 80/125MM

45

OneZone (2)-1

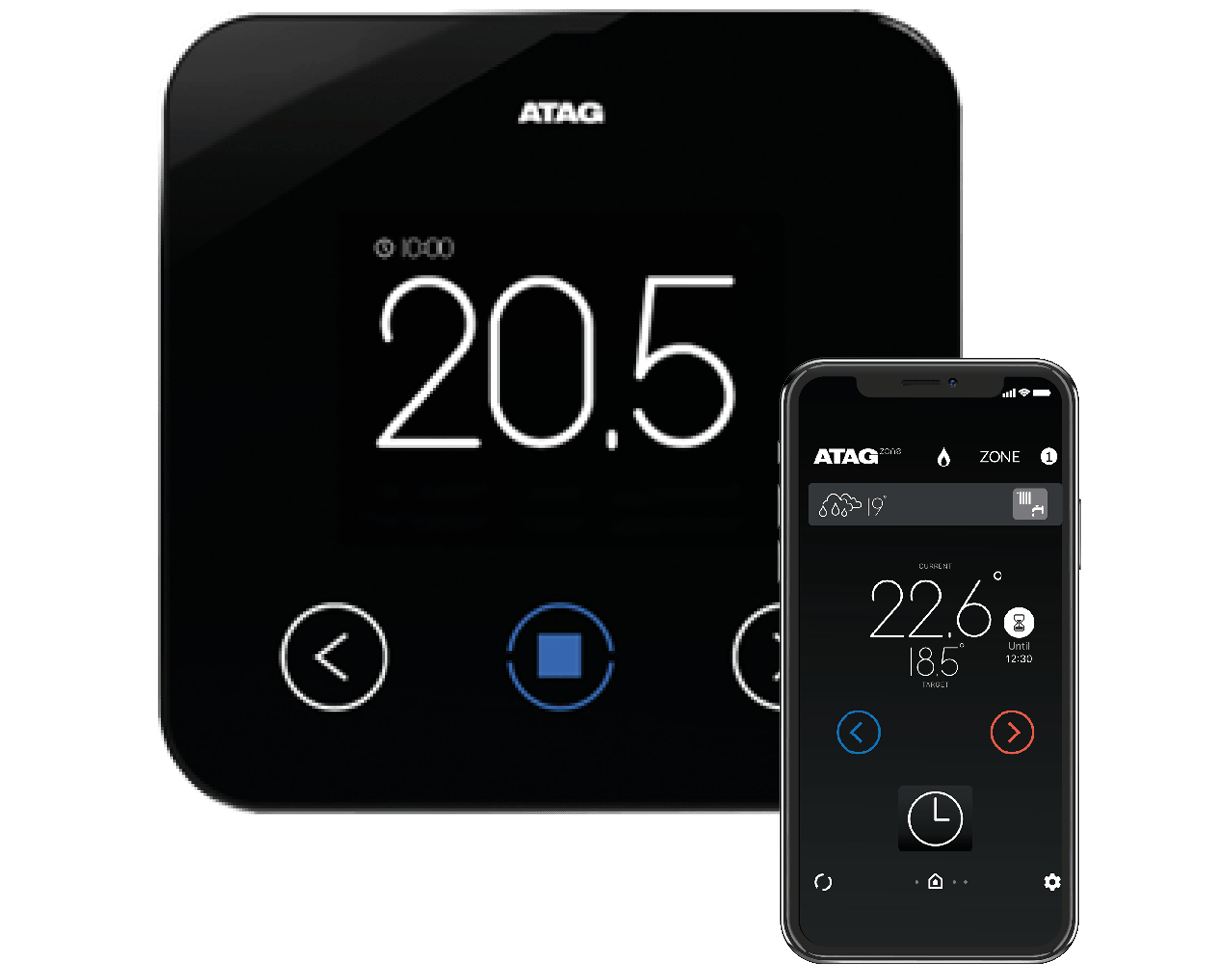

OneZone

Control the temperature in your home remotely using the ATAG One Zone App, available for FREE on the App Store or Google Play

OneZone smart controller
Cyclinders

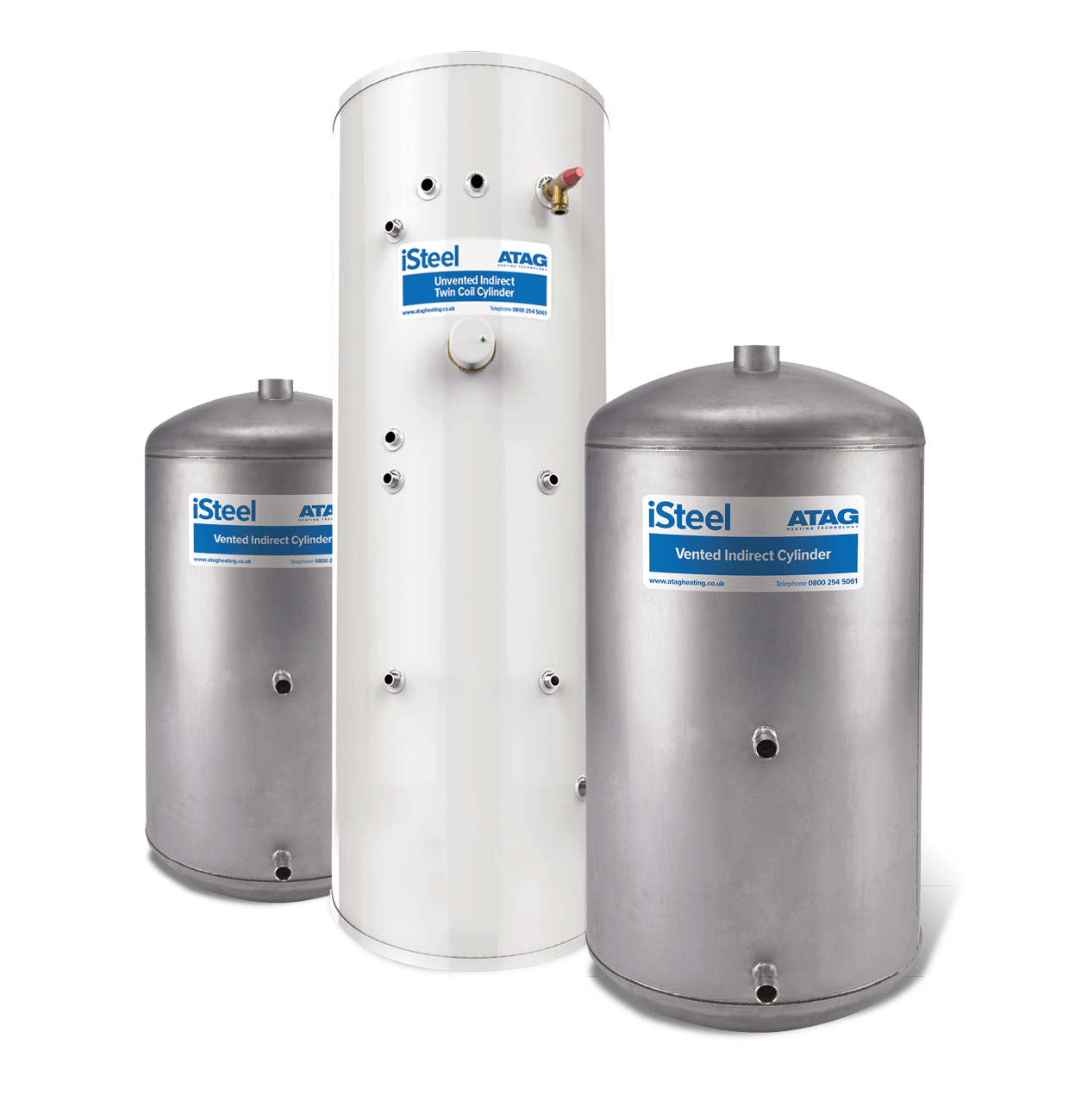

Cylinders

Need replacement cylinders? Check out our range to see which one your boiler requires.

View all cylinders
14 year warranty neon No BG-1

Complete care

Ask your ATAG installer about the complete care pack, including the ONEZone smart controller to increase your standard warranty from 10 to 14 years.

Find out more

Installers that you can depend on

From design through to installation and after-care service, our ATAG selected gas-safe installers are on hand to offer you excellent advice and the best solution possible that suits your needs.

Find an installer
