iC Economiser

iC27 iC35 iC39

Every ATAG boiler carries a 10 years warranty as standard with options up to 14 years.

Some years ago, ATAG’s design engineers realised there was untapped residual heat left in the waste flue gases when the boiler was being used for hot water. So they set upon harnessing the wasted energy and the ATAG Economiser Plus was born.

The range includes three boilers: iC Economiser 27 Plus (12.6 litres), iC Economiser 35 Plus (16.1 litres) and iC Economiser 39 Plus (17.0 litres), with flow rates at an impressive 12.6 l/m - 17.0 l/m @ 35°C temp rise – even higher flow rates than a conventional combi.

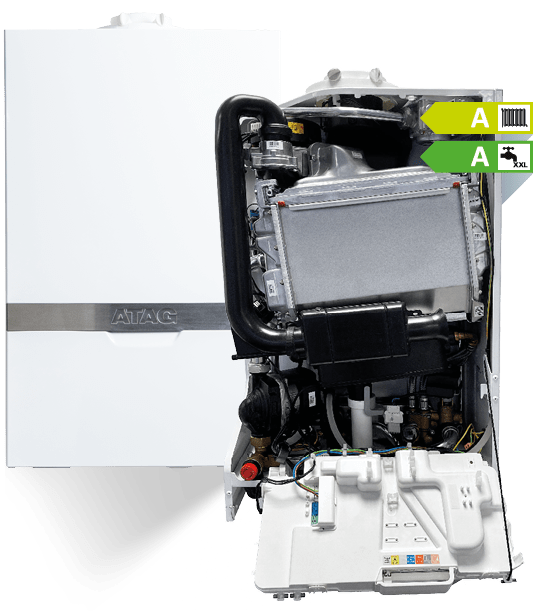

The ATAG iC Economiser Plus works by capturing waste energy from the flue gases and uses it to pre-heat the mains water to improve hot water production efficiency, saving both heat and money in the process.

Get a quote User manual Installation & Servicing Key Features Specification

Key features and benefits

compact

Compact dimensions

h700 x w440 x d355 (mm)

models

Three models available

27W, 35W and 39W

warranty

Up to 14 years warranty

Including all parts and labour

user-friendly

Completely user friendly

with intuitive controls

save

Save on gas bills

Save up to £320 on your gas bills

(www.energysavingtrust.org.uk - April 2017)

instant

Instant hot water

With pre-heat facility

erp-a

ErP "A" rated

Achieves ErP ‘A’ rating for heating and hot water

loved

Loved by customers

ATAG is the UK’s highest rated boiler brand on Trustpilot

  • A 275 mm (deep) model is available to fit inside kitchen cupboards
  • 10 years warranty as standard with options up to 14 years
  • A standard boiler casing houses a Built-in Passive Flue Gas Heat Recovery Device
  • Wall fixing jig for quicker, easier installation
  • ATAG iCon stainless steel heat exchanger – with its unique lifetime replacement guarantee
  • Detailed fault codes on LCD display for quicker, more accurate boiler diagnostics
  • Built in weather compensator gives impressive efficiency benefits and increased comfort
  • Boiler Plus compliant
  • Control the system via smartphone or tablet using the ATAG ONE controller
  • Built in frost protection device

Specifications

Scroll to view more information

PART NUMBER

BE200127

ERP SEASONAL SPACE HEATING ENERGY EFFICIENCY CLASS

A

ERP SEASONAL SPACE HEATING ENERGY EFFICIENCY (%)

94

ERP WATER HEATING ENERGY EFFICIENCY CLASS

A

ERP WATER HEATING ENERGY EFFICIENCY (%)

94

ERP DECLARED LOAD PROFILE DHW

XXL

DHW INPUT (KW)

29.8

CH OUTPUT (KW)

23.2

HOT WATER FLOW RATE @ 35°C RISE L/MIN

12.6

SEDBUK 2009 (%)

89.7

DIMENSIONS (H X W X D) (MM)

700x440x355

BOILER LIFT WEIGHT WITH JIG (KG)

43

STANDARD WARRANTY (YEARS)

10

LPG CONVERSION KIT AVAILABLE

YES

NOx CLASS

6

INGRESS PROTECTION (IP)

IPX4D

MAXIMUM EQUIVALENT HORIZONTAL/VERTICAL FLUE LENGTH (m) 60/100mm

18

MAXIMUM EQUIVALENT HORIZONTAL/VERTICAL FLUE LENGTH (m) 80/120mm

50

Scroll to view more information

PART NUMBER

BE200135

ERP SEASONAL SPACE HEATING ENERGY EFFICIENCY CLASS

A

ERP SEASONAL SPACE HEATING ENERGY EFFICIENCY (%)

94

ERP WATER HEATING ENERGY EFFICIENCY CLASS

A

ERP WATER HEATING ENERGY EFFICIENCY (%)

96

ERP DECLARED LOAD PROFILE DHW

XXL

DHW INPUT KW

40.3

CH OUTPUT KW

31.2

HOT WATER FLOW RATE @ 35°C RISE L/MIN

16.1

SEDBUK 2009 (%)

89.7

DIMENSIONS (H X W X D) (MM)

700x440x355

BOILER LIFT WEIGHT WITH JIG (KG)

46

STANDARD WARRANTY (YEARS)

10

LPG CONVERSION KIT AVAILABLE

10

NOX CLASS

6

INGRESS PROTECTION (IP)

IPX4D

MAXIMUM EQUIVALENT HORIZONTAL/VERTICAL FLUE LENGTH (M) 60/100MM

6

MAXIMUM EQUIVALENT HORIZONTAL/VERTICAL FLUE LENGTH (M) 80/125MM

45

Scroll to view more information

PART NUMBER

BE200139

ERP SEASONAL SPACE HEATING ENERGY EFFICIENCY CLASS

A

ERP SEASONAL SPACE HEATING ENERGY EFFICIENCY (%)

94

ERP WATER HEATING ENERGY EFFICIENCY CLASS

A

ERP WATER HEATING ENERGY EFFICIENCY (%)

96

ERP DECLARED LOAD PROFILE DHW

XXL

DHW INPUT (KW)

42.5

CH OUTPUT (KW)

31.2

HOT WATER FLOW RATE @ 35°C RISE L/MIN

17.0

SEDBUK 2009 (%)

89.7

DIMENSIONS (H X W X D) MM

700X440X355

BOILER LIFT WEIGHT WITH JIG (KG)

46

STANDARD WARRANTY (YEARS)

10

LPG CONVERSION KIT AVAILABLE

YES

NOX CLASS

6

INGRESS PROTECTION (IP)

IPX4D

MAXIMUM EQUIVALENT HORIZONTAL/VERTICAL FLUE LENGTH (M) 60/100MM

6

MAXIMUM EQUIVALENT HORIZONTAL/VERTICAL FLUE LENGTH (M) 80/125MM

45
