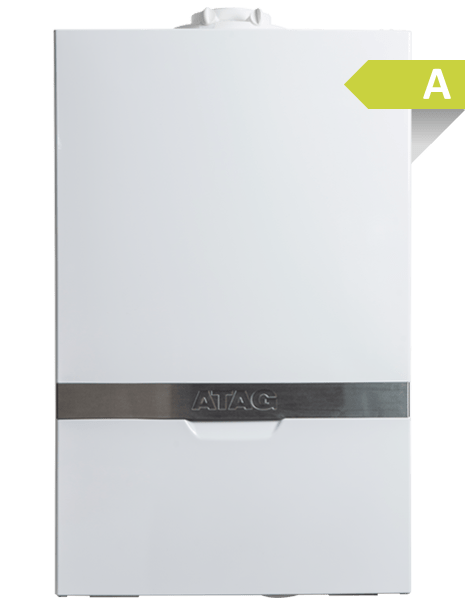

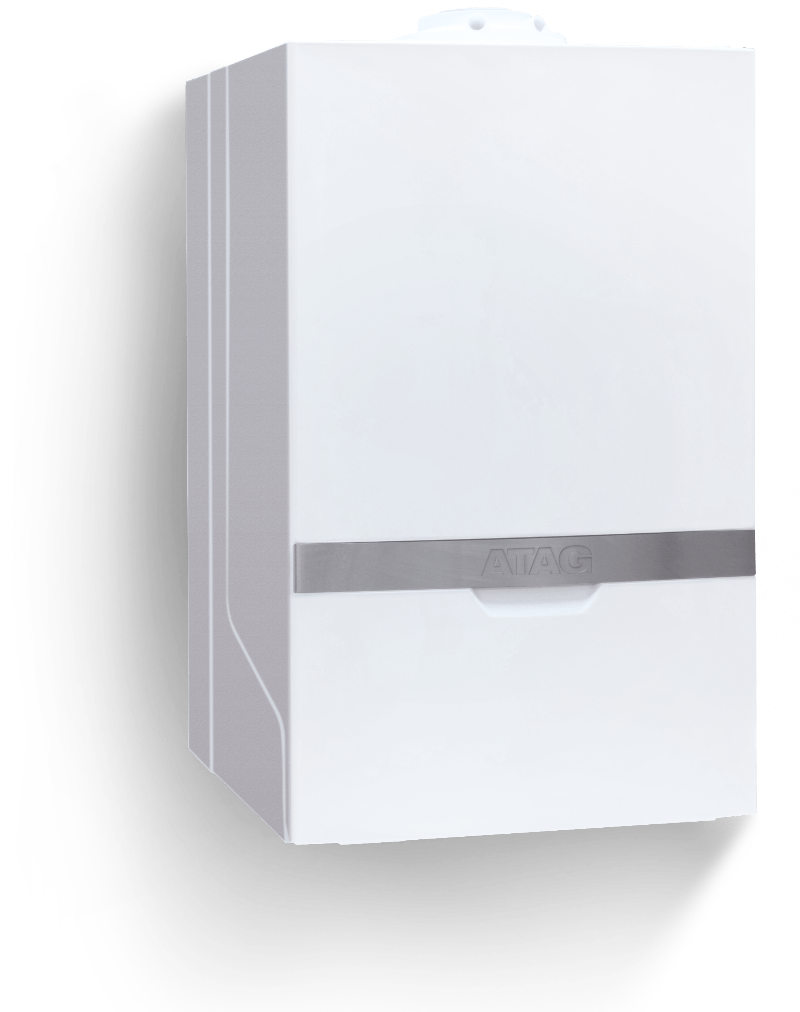

iR Regular

i15R i18R i24R i32R i40R iC24

Every ATAG boiler carries a 10 years warranty as standard with options up to 14 years.

Our high efficiency regular boiler.

ATAG iR boilers are available in various outputs from 15kW to 40kW and are suitable for most homes, regardless of the hot water demand. An ATAG iR regular boiler can also be installed with our iSteel range of hot water cylinders for increased efficiency levels.

iR regular boilers are specifically designed for open vented systems, presenting considerable options for larger homes with higher volume hot water needs.

An ATAG iR regular boiler can also be installed with our iSteel range of hot water cylinders for increased efficiency levels.

Get a quote User manual Installation & Servicing Key Features Specification

Key features and benefits

compact

Compact dimensions

h700 x w440 x d366 (mm)

models

Five models available

15kW, 18kW, 24kW, 32kW, 40kW

warranty

Up to 14 years warranty

Including all parts and labour

user-friendly

Completely user friendly

with intuitive controls

no-sound

Quiet in operation

Due to bottom-up modulation

snow

Frost protection

With built-in frost protection

erp-a

ErP "A" rated

Achieves ErP ‘A’ rating for heating and hot water

loved

Loved by customers

ATAG is the UK’s highest rated boiler brand on Trustpilot

  • A 275 mm (deep) model is available to fit inside kitchen cupboards
  • 10 years warranty as standard with options up to 14 years
  • ATAG iCon stainless steel heat exchanger – with its unique lifetime replacement guarantee
  • Supplied with fixing jig as standard, for rear piping up behind the boiler
  • Factory pre-set for speedier commissioning
  • Detailed fault codes on LCD display for quicker, more accurate boiler diagnostics
  • Compatible with underfloor systems with easy change of parameter settings
  • Fully compatible with solar thermal hot water systems and ATAG iSteel twin coil cylinder range
  • Fully compatible with ATAG iSteel cylinder range
  • Wide modulation range delivers significant fuel savings
  • Control the system via smartphone or tablet using the ATAG ONE controller

Specifications

Scroll to view more information

Part Number

BR400115

ERP SEASONAL SPACE HEATING ENERGY EFFICIENCY CLASS

A

ERP SEASONAL SPACE HEATING ENERGY EFFICIENCY (%)

94

CH OUTPUT KW (50/30°C)

14.7

SEDBUK 2009 (%)

89.8

DIMENSIONS (H X W X D) MM

700X440X355

BOILER LIFT WEIGHT WITH JIG KG

32

STANDARD WARRANTY (YEARS)

10

LPG AVAILABLE

YES

NOX CLASS

6

INGRESS PROTECTION (IP)

IPX4D

MAXIMUM EQUIVALENT HORIZONTAL/VERTICAL FLUE LENGTH (M) 60/100MM

18

MAXIMUM EQUIVALENT HORIZONTAL/VERTICAL FLUE LENGTH (M) 80/125MM

50

Scroll to view more information

Part Number

BR400118

ERP SEASONAL SPACE HEATING ENERGY EFFICIENCY CLASS

A

ERP SEASONAL SPACE HEATING ENERGY EFFICIENCY (%)

94

CH OUTPUT KW (50/30°C)

17.5

SEDBUK 2009 (%)

89.8

DIMENSIONS (H X W X D) MM

700X440X355

BOILER LIFT WEIGHT WITH JIG KG

32

STANDARD WARRANTY (YEARS)

10

LPG AVAILABLE

YES

NOX CLASS

6

INGRESS PROTECTION (IP)

IPX4D

MAXIMUM EQUIVALENT HORIZONTAL/VERTICAL FLUE LENGTH (M) 60/100MM

18

MAXIMUM EQUIVALENT HORIZONTAL/VERTICAL FLUE LENGTH (M) 80/125MM

50

Scroll to view more information

Part Number

BR400124

ERP SEASONAL SPACE HEATING ENERGY EFFICIENCY CLASS

A

ERP SEASONAL SPACE HEATING ENERGY EFFICIENCY (%)

94

CH OUTPUT KW (50/30°C)

23.2

SEDBUK 2009 (%)

89.8

DIMENSIONS (H X W X D) MM

700X440X355

BOILER LIFT WEIGHT WITH JIG KG

32

STANDARD WARRANTY (YEARS)

10

LPG AVAILABLE

YES

NOX CLASS

6

INGRESS PROTECTION (IP)

IPX4D

MAXIMUM EQUIVALENT HORIZONTAL/VERTICAL FLUE LENGTH (M) 60/100MM

18

MAXIMUM EQUIVALENT HORIZONTAL/VERTICAL FLUE LENGTH (M) 80/125MM

50

Scroll to view more information

Part Number

BR400132

ERP SEASONAL SPACE HEATING ENERGY EFFICIENCY CLASS

A

ERP SEASONAL SPACE HEATING ENERGY EFFICIENCY (%)

94

CH OUTPUT KW (50/30°C)

31.2

SEDBUK 2009 (%)

89.8

DIMENSIONS (H X W X D) MM

700X440X355

BOILER LIFT WEIGHT WITH JIG KG

35

STANDARD WARRANTY (YEARS)

10

LPG AVAILABLE

YES

NOX CLASS

6

INGRESS PROTECTION (IP)

IPX4D

MAXIMUM EQUIVALENT HORIZONTAL/VERTICAL FLUE LENGTH (M) 60/100MM

6

MAXIMUM EQUIVALENT HORIZONTAL/VERTICAL FLUE LENGTH (M) 80/125MM

45

Scroll to view more information

Part Number

BR400140

ERP SEASONAL SPACE HEATING ENERGY EFFICIENCY CLASS

A

ERP SEASONAL SPACE HEATING ENERGY EFFICIENCY (%)

94

CH OUTPUT KW (50/30°C)

38.8

SEDBUK 2009 (%)

89.8

DIMENSIONS (H X W X D) MM

700X440X355

BOILER LIFT WEIGHT WITH JIG KG

42

STANDARD WARRANTY (YEARS)

10

LPG AVAILABLE

YES

NOX CLASS

6

INGRESS PROTECTION (IP)

IPX4D

MAXIMUM EQUIVALENT HORIZONTAL/VERTICAL FLUE LENGTH (M) 60/100MM

6

MAXIMUM EQUIVALENT HORIZONTAL/VERTICAL FLUE LENGTH (M) 80/125MM

45

OneZone (3)

OneZone

Control the temperature in your home remotely using the ATAG One Zone App, available for FREE on the App Store or Google Play.

View the OneZone
Cylinders

Cylinders

Need replacement cylinders? Check out our range to see which one each boiler requires.

View all cylinders

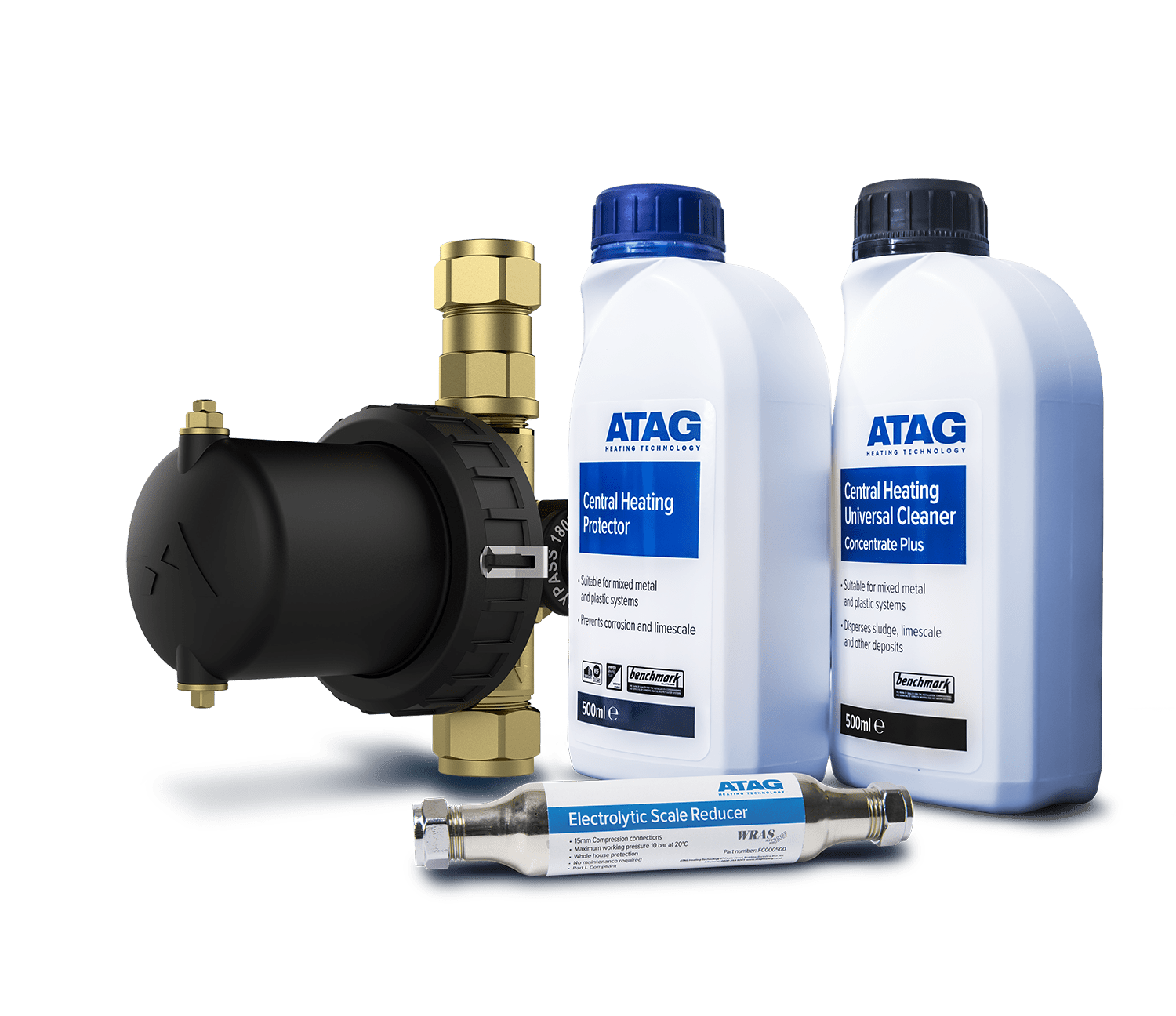

Flyer Water Treatment Pack
